Product Model: J580CB-24
Color: Black
Physical Parameters
Dimensions: 1190 × 390 × 23 mm
Weight: 6 kg
Glass: Low-iron tempered glass (3.2 mm + backsheet)
Solar Cell Type: IBC monocrystalline (166 × 83 mm, 2×12 configuration)
Junction Box: IP67 rated
Cable: 900 mm length, 4 mm² cross-section
Connector: MC4
Life Span: >30 years
Electrical Parameters (STC)
Power output: 80WModule efficiency: 19.4%
Voltage at Pmax (Vmp): 14.0V
Current at Pmax (Imp): 5.71A
Open-Circuit Voltage (Voc): 16.90V
Short-Circuit Current (Isc): 6.02 A
Product Structure
Tempered glass (front)
EVA encapsulant
IBC high-efficiency solar cell layer
Backsheet
Mounting hooks and frame structure
Operating Conditions
Max System Voltage: 1500V DC
Fuse Rating: 16A max
Temperature Range: -40°C to +85°C
Max Static Load front (e.g, snow): 5400 Pa
Max Static Load front: 2400 Pa
Max hailstone impact: 25mm / 23mm

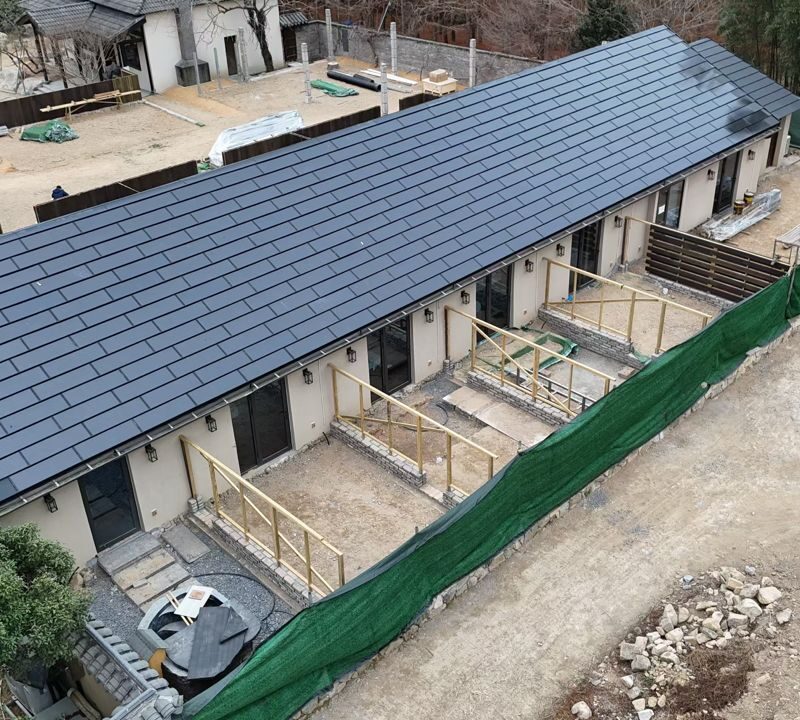

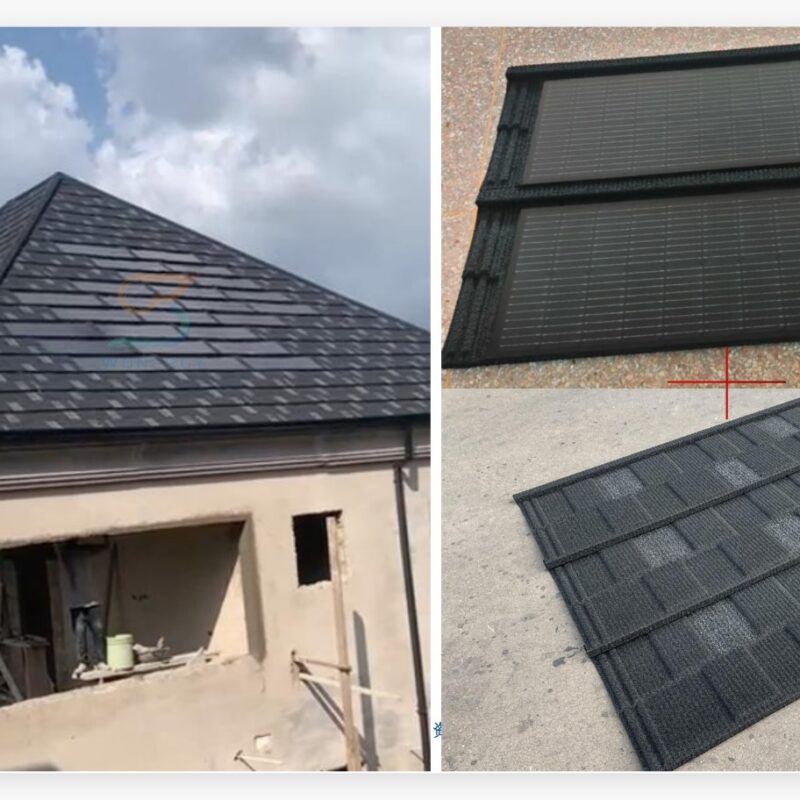

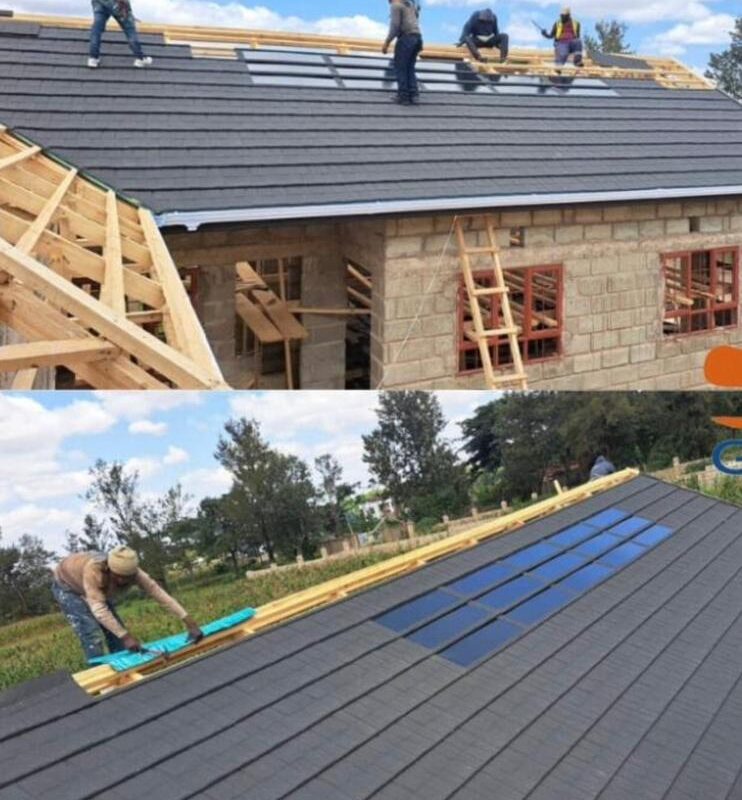

Solar roof tiles
Solar roof tiles transform homes into sleek, energy-efficient powerhouses. These stylish tiles blend seamlessly with traditional roofs while generating clean electricity. Built to last, they withstand extreme weather and cut energy bills. Unlike bulky panels, they maintain your home’s curb appeal. A smart, sustainable upgrade for modern living.
